MOBE-200
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
MOBE-201 |
MOBE-202 |
MOBE-203 |
MOBE-204 |
MOBE-205 |
|
Viewing Head |
Monocular Head, Inclined at 45°,360° rotatable |
● |
|
|
|
|
|
Dual observation head. One tube 30° inclined and another tube vertical, 360° rotatable |
● |
|
|
|
||
|
Dual observation head,45°inclined, 360° rotatable |
● |
|
|
|||
|

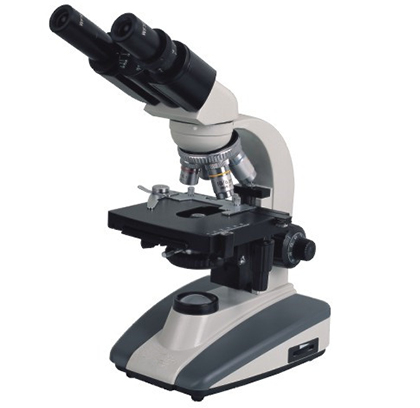

Binocular head, interpupillary distance:55-75mm,30° inclined,360° rotatable |
|
● |
|
|||
|
Trinocular head, interpupillary distance:55-75mm,30° inclined,360° rotatable |
|
|
● |
|||
|
Nosepiece |
Quadruple nosepiece |
● |
● |
● |
● |
● |
|
Eyepiece |
Wide Field Eyepiece WF10×/16mm |
● |
● |
● |
● |
● |
|
Wide Field Eyepiece WF16X |
|
|
|
|||
|
Objective |
45mm DIN Achromatic Objective 4×, 10×, 40×(S),100(S, Oil) |
● |
● |
● |
● |
● |
|
Stage |
Double layers mechanical stage 130*130mm, moving range X-Y:60*30mm |
● |
● |
● |
● |
● |
|
Diaphragm |
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter |
● |
● |
● |
● |
● |
|
Condenser |
Abbe condenser, N.A. 1.25 |
● |
● |
● |
● |
● |
|
Focusing |
Coaxial coarse and fine focusing knob,20mm |
● |
● |
● |
● |
● |
|
Illumination |
1W LED Illumination |
● |
● |
● |
● |
● |
