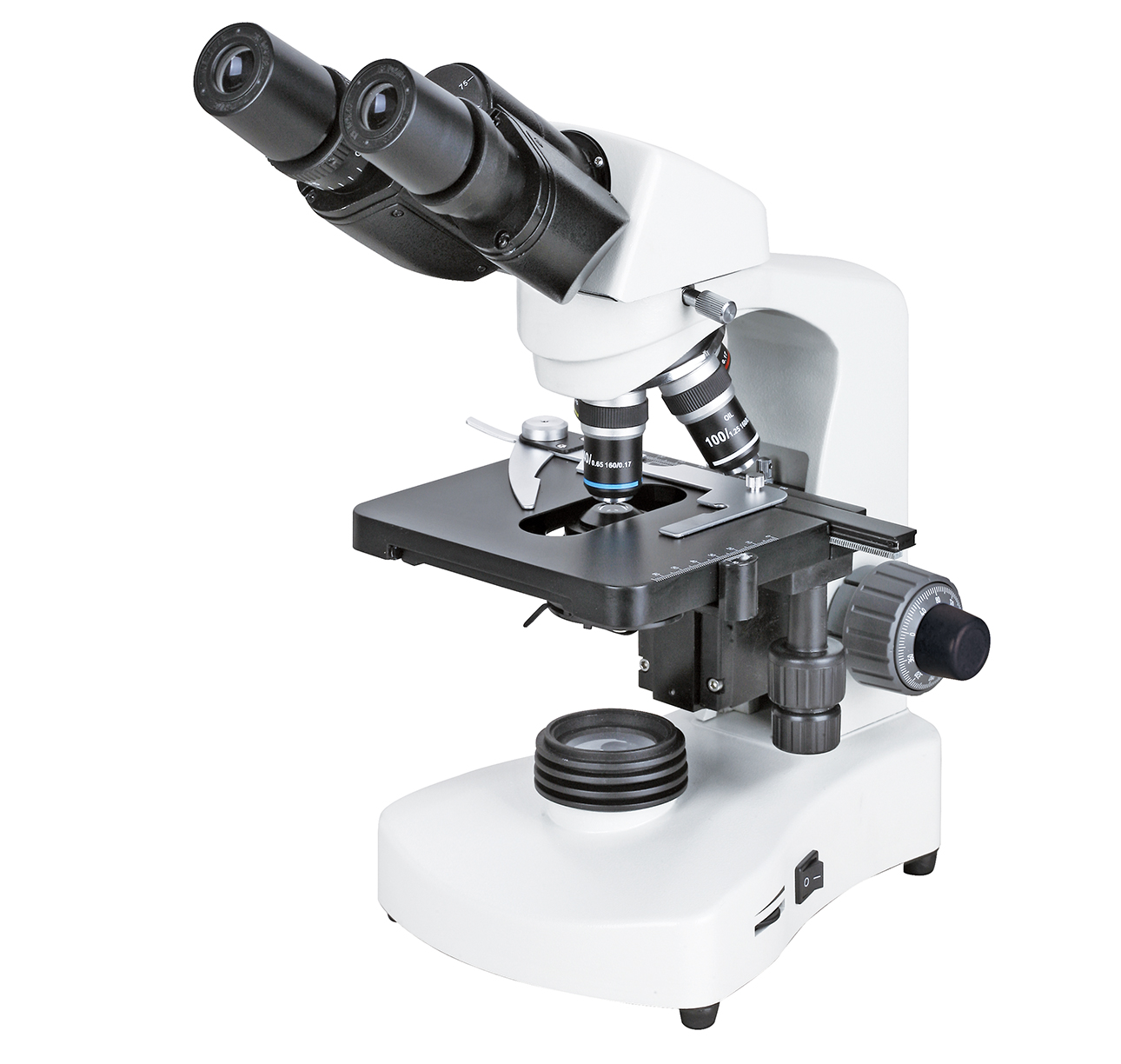

MOBE-700
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specifcation |
MOBE-700 |
|
Viewing Head |
Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm |
● |
|
Compensation Free Trinocular Head, Inclined at 30°, Interpupilary Distance 55-75mm |
○ |
|
|
Eyepiece |
WF10×/18 |
● |
|
P16×/11 |
○ |
|
|
Objective |
Achromatic Objective 4×、10×、40×、100× |
● |
|
Nosepiece |
Backward Quadruple Nosepiece |
● |
|
Stage |
Double Layer Mechanical Stage 132×142mm/ 75×40mm |
● |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm |
● |
|
Condenser |
Abbe NA 1.20 with Iris Diaphram & Filter |
● |
|
Abbe NA 1.25 with Iris Diaphram & Filter |
○ |
|
|
Illumination |
S-LED, Brightness Adjustable |
● |
|
Halogen Lamp 6V/ 20W, Brightness Adjustable |
○ |
|
|
Phase Contrast Kit |
|
○ |
|
Dark Field Attachment |
|
○ |
|
Polarization Attachment |
|
○ |
