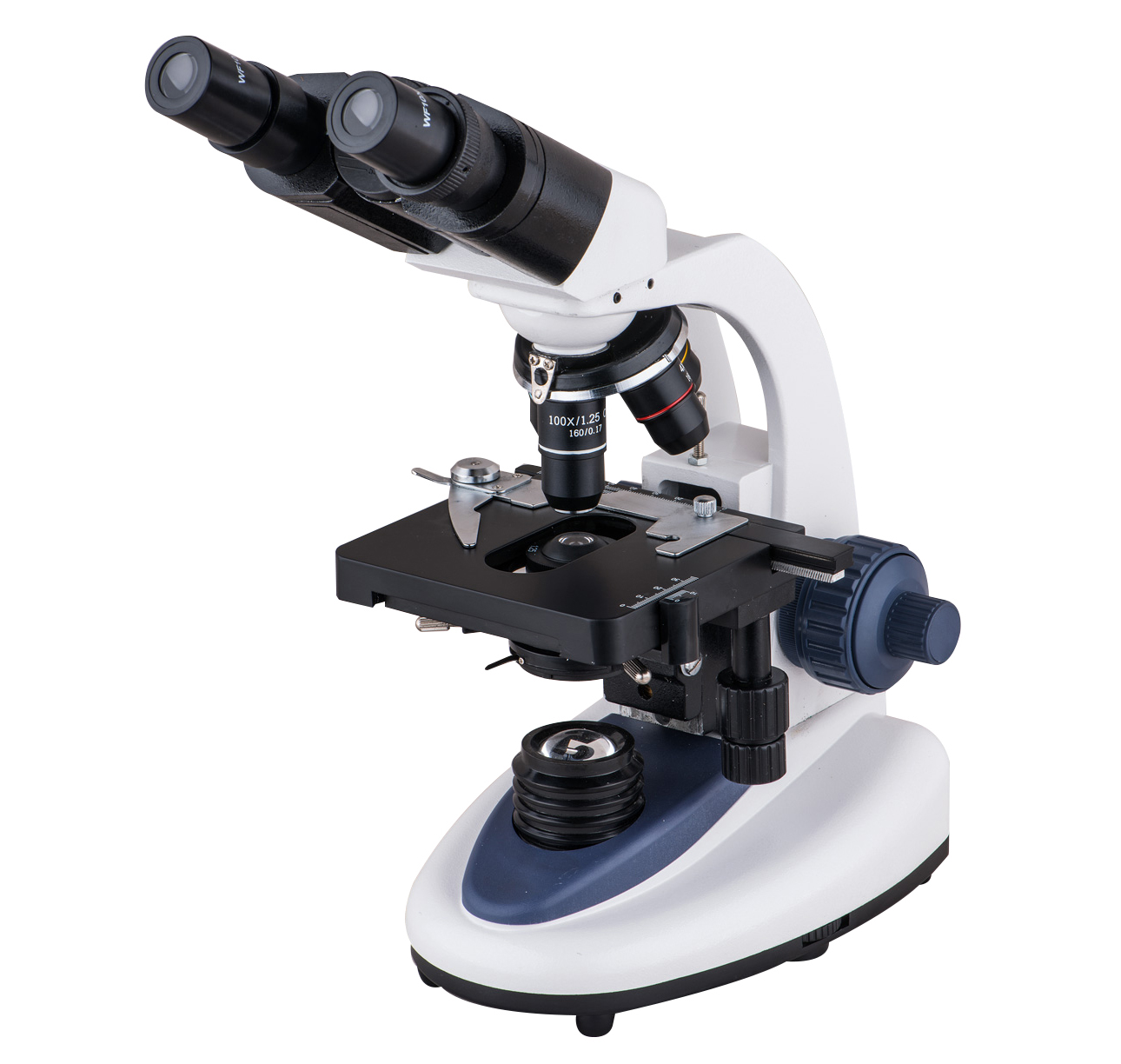

MOBE-800
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
MOBE-801 |
MOBE-802 |
|
Viewing head |
Monocular head |
||
|
Dual Viewing head |
|||
|
Binocular head, 45° inclined |
● |
|
|
|
Trinocular head, 45° inclined |
|
● |
|
|
Nosepiece |
Quadruple nosepiece |
● |
● |
|
Eyepiece |
Wide Field Eyepiece WF10× |
● |
● |
|
Wide Field Eyepiece WF16X |
|
|
|
|
Objective |
45mm DIN Achromatic Objective 4×, 10×, 40×(S),100(S, Oil) |
● |
● |
|
Stage |
Double layers mechanical stage 115*125mm |
● |
● |
|
Condenser |
Abbe condenser, N.A. 1.25 |
● |
● |
|
Focusing |
Coaxial coarse and fine focusing knob,focusing range 30mm,0.02mm |
● |
● |
|
Illumination |
LED Illumination |
● |
● |
