MOBE-70E
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |

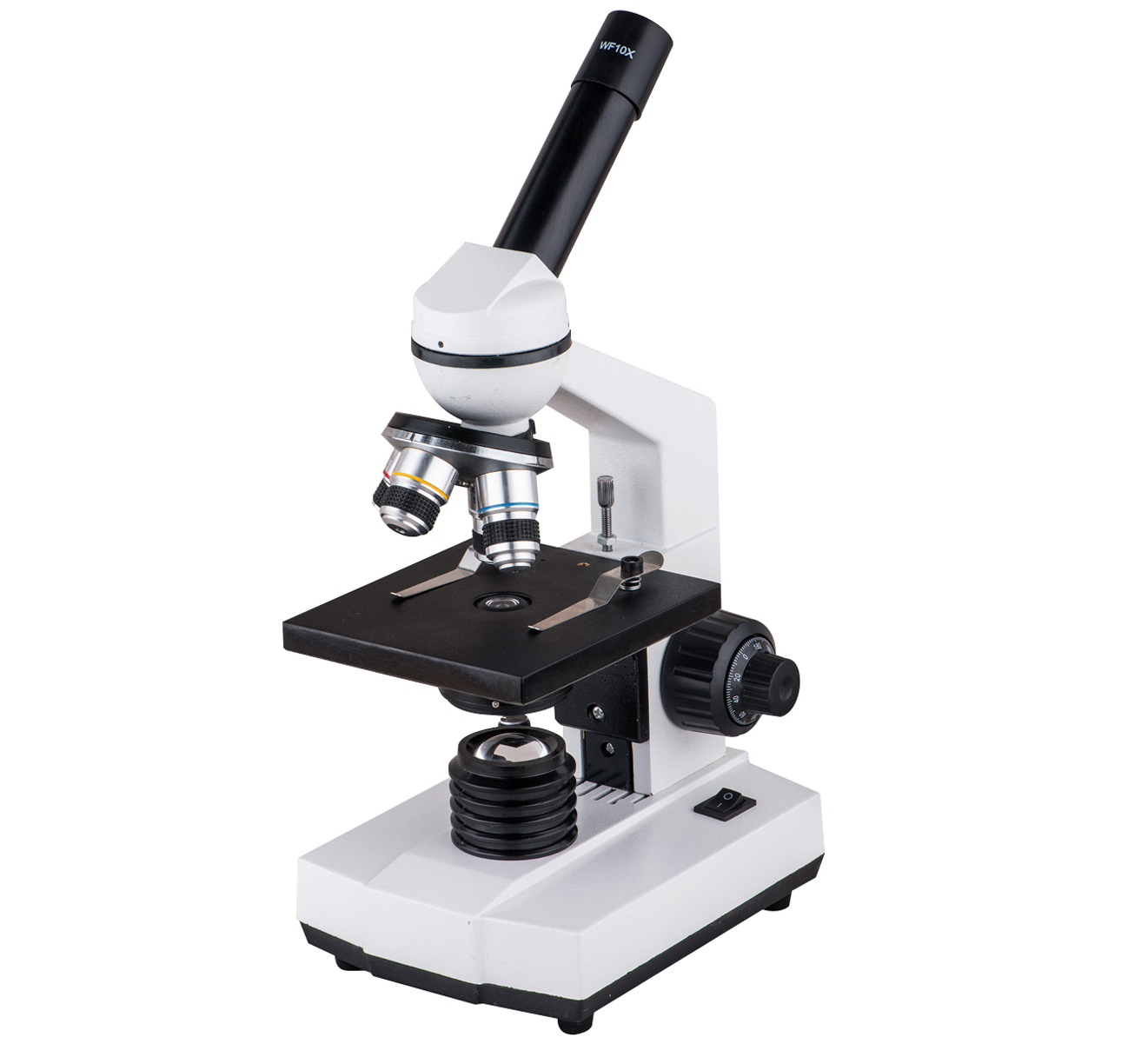

MOBE-71E |

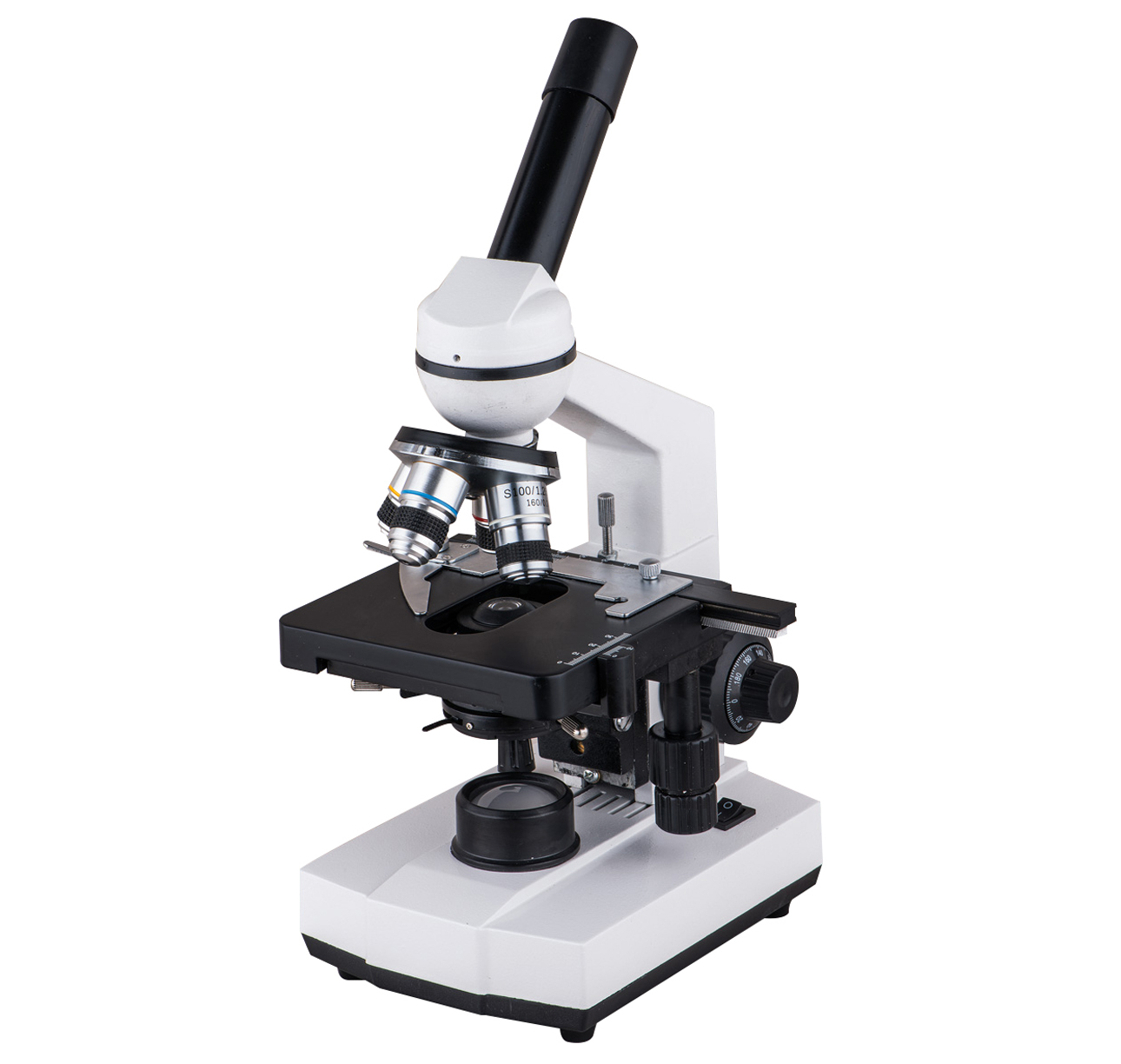

MOBE-72E |
|
Viewing Head |
Monocular Head |
● |
● |
|
Nosepiece |
Triple Nosepiece |
● |
|
|
Quadruple nosepiece |
● |
||
|
Eyepiece |
Wide Field Eyepiece WF10× |
● |
● |
|
Wide Field Eyepiece WF16X |
|||
|
Objective |
45mm DIN Achromatic Objective 4×, 10×, 40×(S) |
● |
|
|
45mm DIN Achromatic Objective 4×, 10×, 40×(S),100X(S, Oil) |
● |
||
|
Stage |
Plain stage with paired clips |
● |
|
|
Double layers mechanical stage 115*125mm |
● |
||
|
Condenser |
Rotaing disc diaphragm |
● |
|
|
Abbe condenser, N.A. 1.25 with Iris Diaphragm and filter |
● |
||
|
Focusing |
Coaxial coarse and fine focusing knob,20mm |
● |
|
|
Coaxial coarse and fine focusing knob,30mm,0.02mm |
● |
||
|
Illumination |
LED Lamp Illumination |
● |
● |
