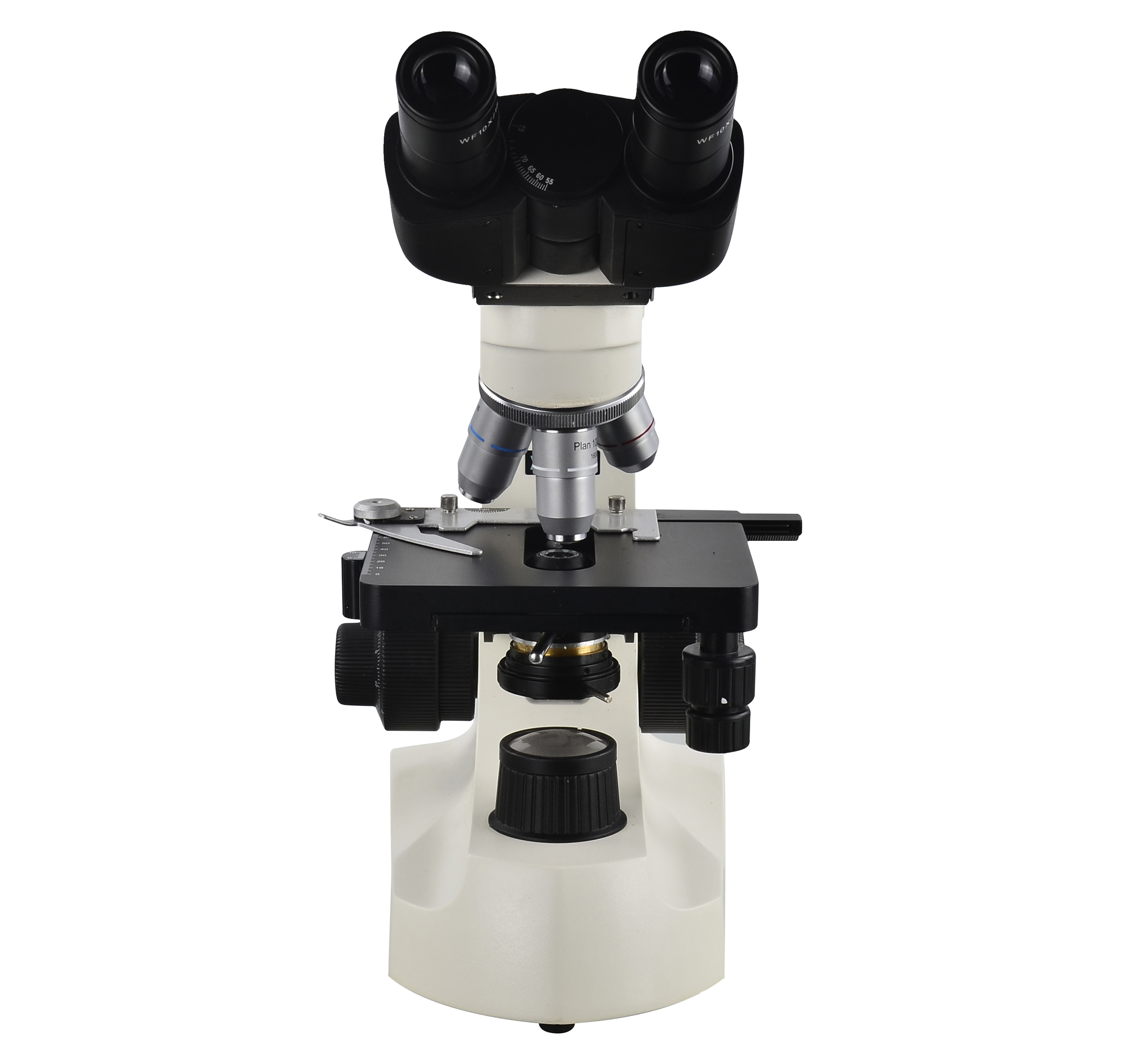

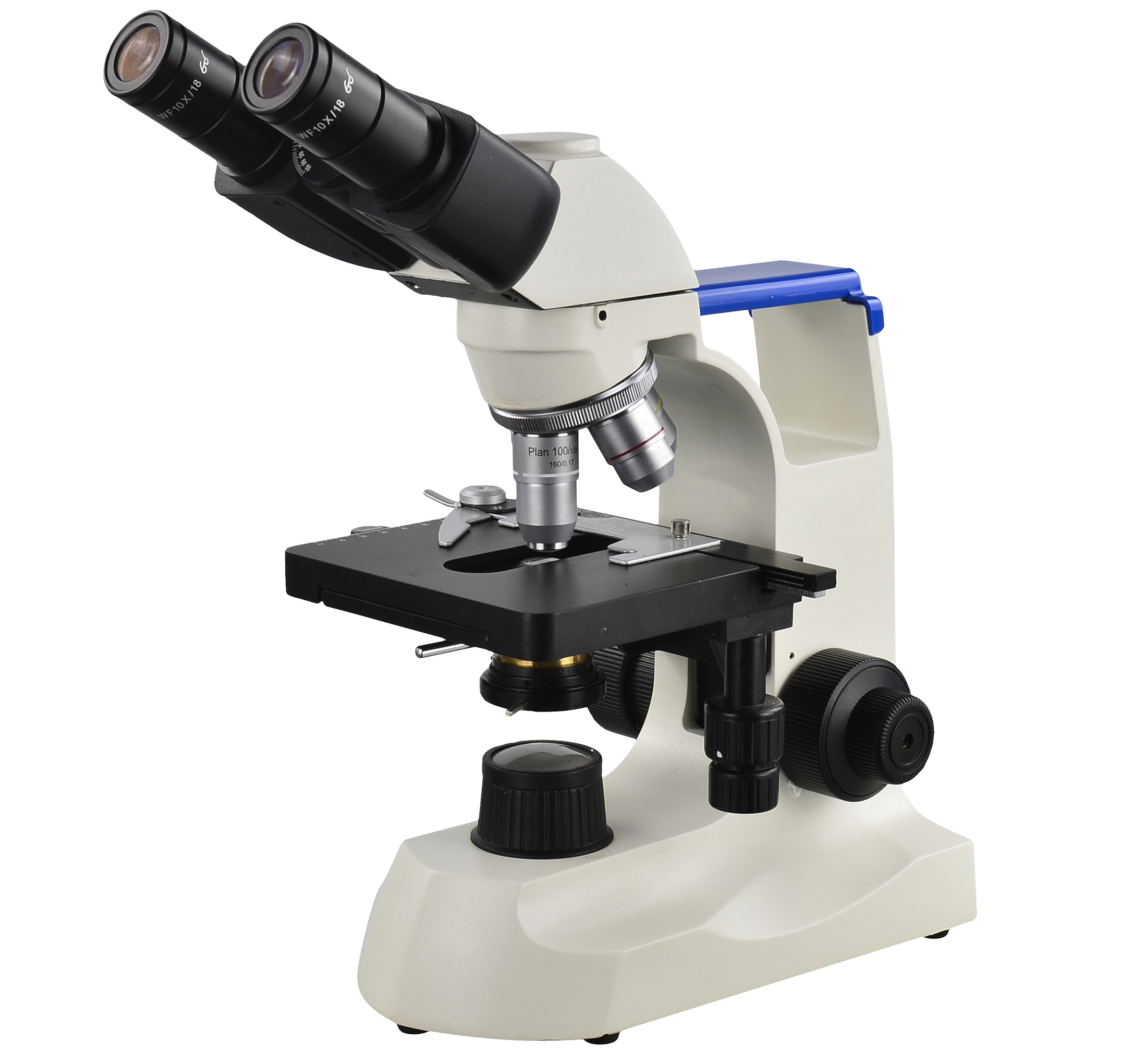

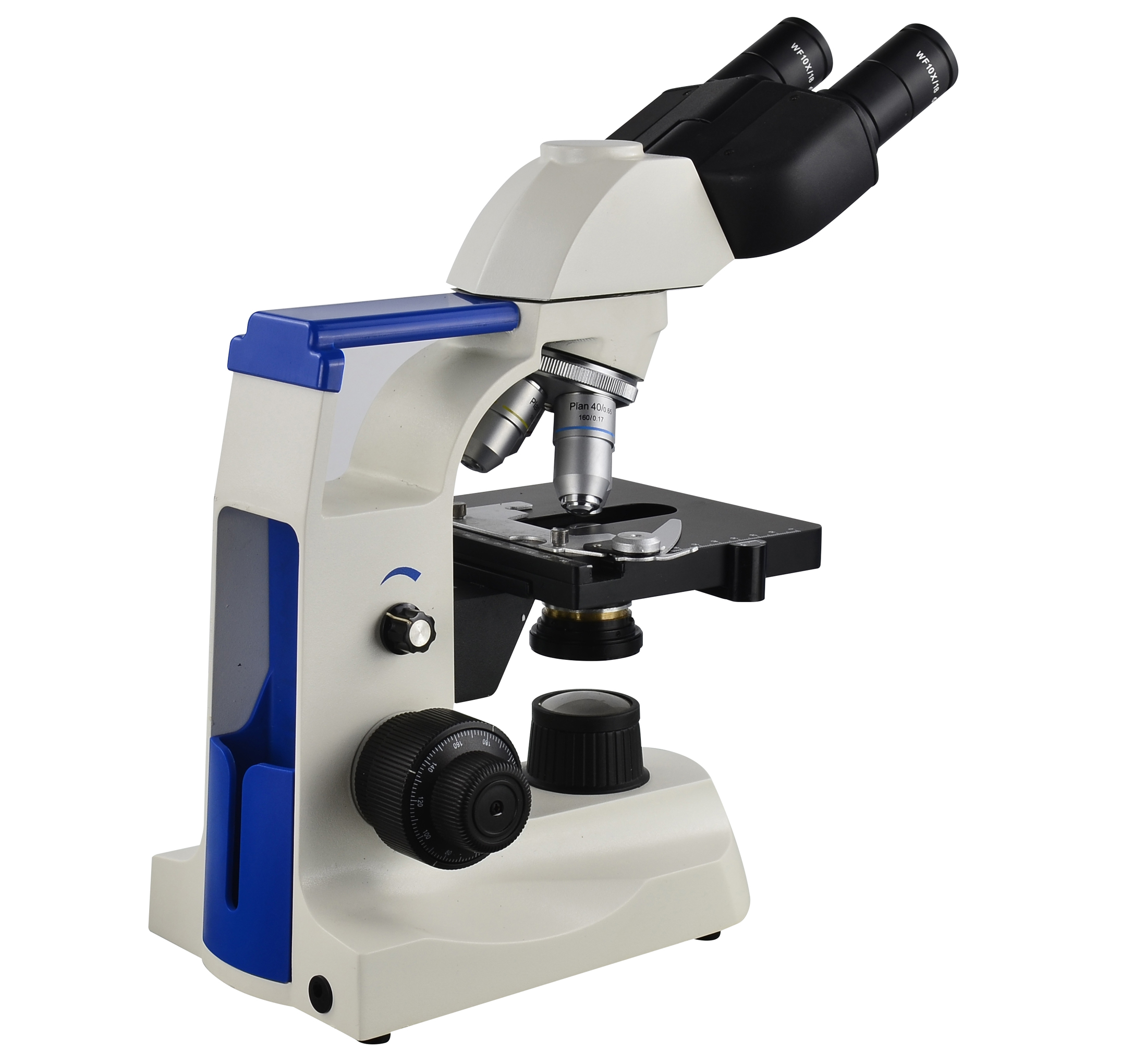

MOBE-900
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
|
Item |
MOBE-901 |
MOBE-902 |
MOBE-903 |
MOBE-904 |
|
Eyepieces |
10×Plan Eyepiece WF10×/18 f=25 |
●● |
●● |
●● |
●● |
|
16×Plan Eyepiece WF16×/10 f=15.6 |
○○ |
○○ |
○○ |
○○ |
|
|
10×Plan Eyepiece with Pointer WF10×/18 f=25 |
○ |
○ |
○ |
○ |
|
|
Objectives |
4×Achromatic Objective,NA=0.10 WD=35.8 |
● |
● |
○ |
○ |
|
10×Achromatic Objective, NA=0.25 WD=6.64 |
● |
● |
○ |
○ |
|
|
40×Achromatic Objective,(s) NA=0.65 WD=0.62 |
● |
● |
○ |
○ |
|
|
100×Achromatic Objective (oil),(s)NA=1.25 WD=0.35 |
● |
● |
○ |
○ |
|
|
4× Semi Plan Objective,NA=0.10 WD=35.8 |
○ |
○ |
● |
● |
|
|
10×Semi Plan Objective,NA=0.25 WD=6.64 |
○ |
○ |
● |
● |
|
|
40×Semi Plan Objective,(s) NA=0.65 WD=0.62 |
○ |
○ |
● |
● |
|
|
100×Semi Plan Objective (oil), (s)NA=1.25 WD=0.35 |
○ |
○ |
● |
● |
|
|
Stage |
mechanical stage, Movement：78×30 |
● |
● |
● |
● |
|
Viewing head |
Binocular,30°Incline |
● |
|
● |
|
|
Trinocular,30°Incline |
|
● |
|
● |
|
|
Condenser |
Condenser NA=1.25 |
● |
● |
● |
● |
|
Illuminator |
3W LED Device(with battery） |
○ |
○ |
○ |
○ |
|
3W LED Device (without battery) |
● |
● |
● |
● |
|
|
|
Blue Filter,φ42 |
● |
● |
● |
● |
