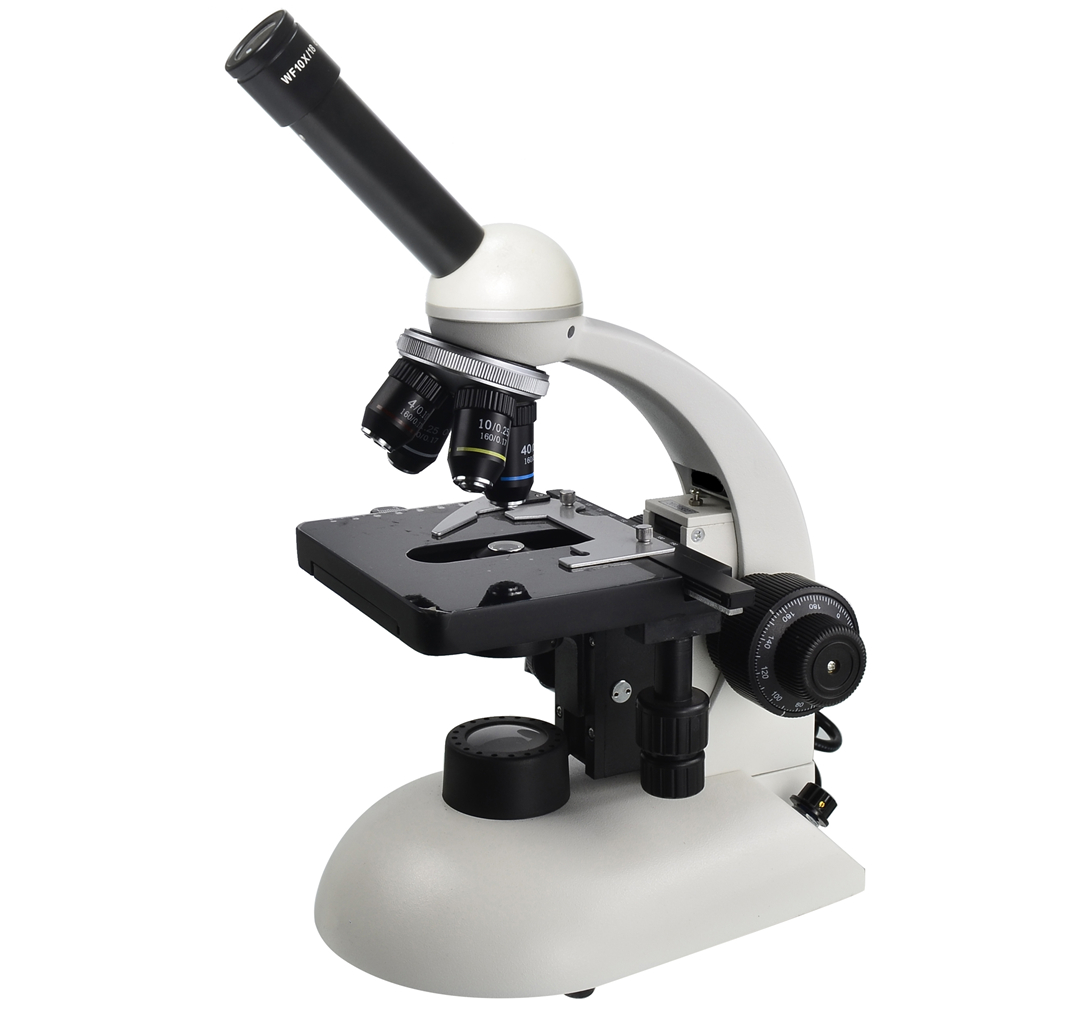

MOBE-400E
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Item |
Configuration |
MOBE- 401E |
MOBE- 402E |
MOBE- 403E |
MOBE- 404E |
|
Tube |

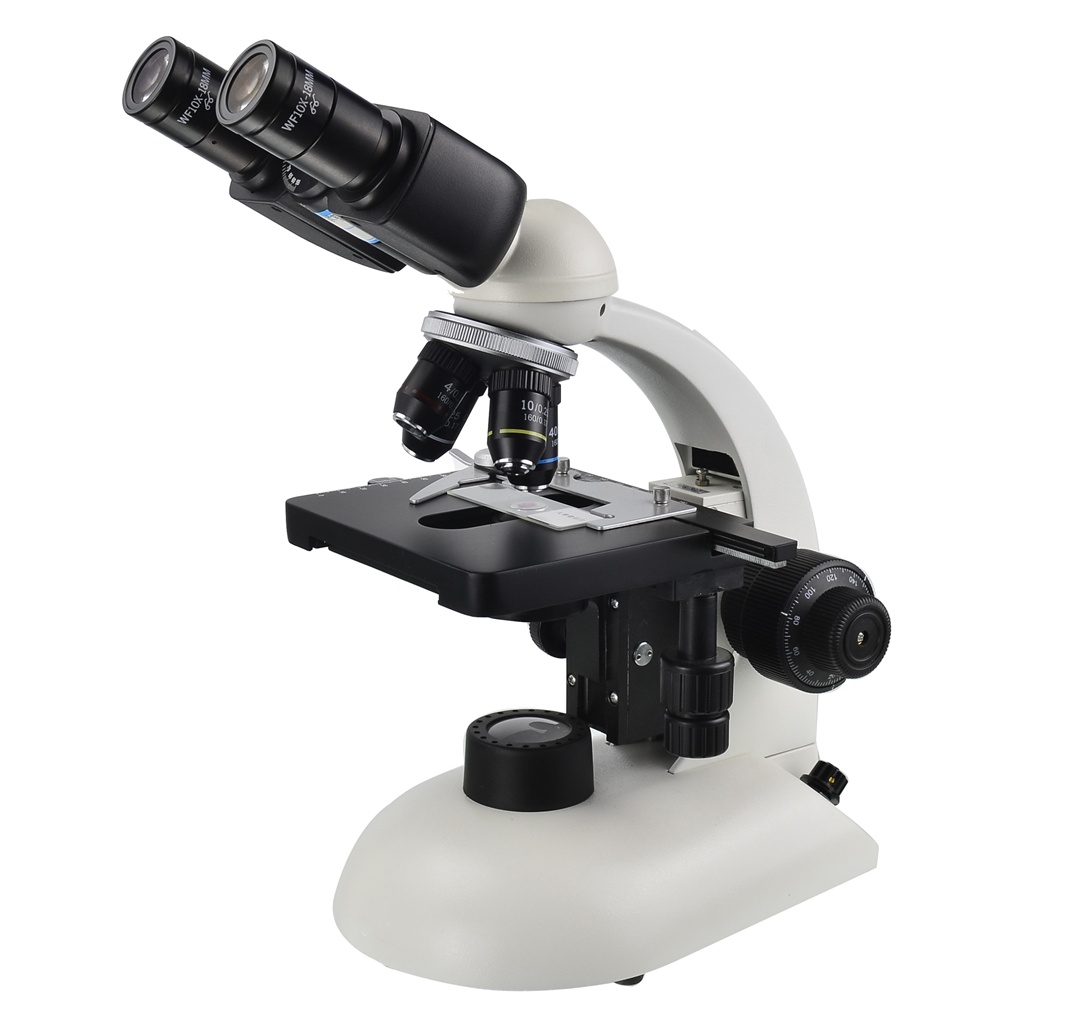

Binocular, Interpupillary distance 52-75mm |
● |
● |
||
|

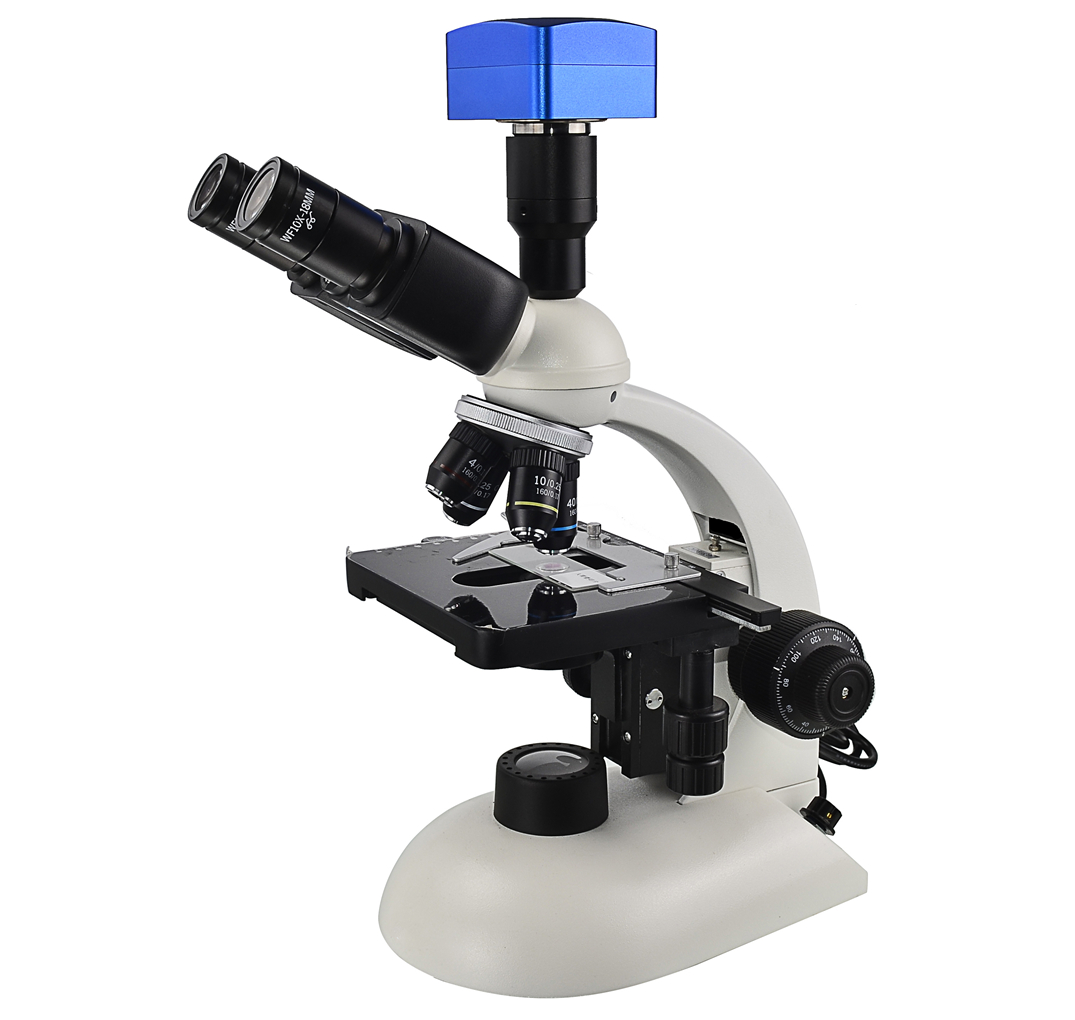

Trinocular, Interpupillary distance 52-75mm |
● |
● |
|||
|
Eyepiece |
High eye-point plan eyepiece 10X/Φ18mm |
●● |
●● |
●● |
●● |
|
High eye-point plan eyepiece 10X/Φ20mm |
○○ |
○○ |
○○ |
○○ |
|
|
High eye-point plan eyepiece 16X/Φ10mm |
○○ |
○○ |
○○ |
○○ |
|
|
High eye-point plan eyepiece WF10X/18 (Pointer) |
○ |
○ |
○ |
○ |
|
|
High eye-point plan eyepiece WF10X/20 (Pointer) |
○ |
○ |
○ |
○ |
|
|
High eye-point plan eyepiece WF10X/16 (Pointer) |
○ |
○ |
○ |
○ |
|
|
Plan Reticule Eyepiece, Cross 10X/Φ18mm |
○ |
○ |
○ |
○ |
|
|
Plan Reticule Eyepiece, Cross 10XΦ20mm |
○ |
○ |
○ |
○ |
|
|
Objective |
Achromatic Objective 4X |
● |
● |
○ |
○ |
|
Achromatic Objective 10X |
● |
● |
○ |
○ |
|
|
Achromatic Objective 40X（S） |
● |
● |
○ |
○ |
|
|
Achromatic Objective100X（S）（OIL） |
● |
● |
○ |
○ |
|
|
Semi-Plan Achromatic Objective 4X |
○ |
○ |
● |
● |
|
|
Semi-Plan Achromatic Objective 10X |
○ |
○ |
● |
● |
|
|
Semi-Plan Achromatic Objective 40X（S） |
○ |
○ |
● |
● |
|
|
Semi-Plan Achromatic Objective 100X（S）（OIL） |
○ |
○ |
● |
● |
|
|
Stage |
Mechanical Stage Size: 140mmX130mm， Moving Range: 78X30mm |
● |
● |
● |
● |
|
Nosepiece |
Quadruple Nosepiece |
● |
● |
● |
● |
|
Quintuple Nosepiece |
○ |
○ |
○ |
○ |
|
|
Condenser |
NA=1.25 |
● |
● |
● |
● |
|
C-Mount |
1X |
○ |
● |
○ |
● |
|
Power |
6V20W Halogen Lamp |
○ |
○ |
○ |
○ |
|
3W LED |
● |
● |
● |
● |
|
|
Filter |
Blue Filter |
○ |
○ |
○ |
○ |
|
Green Filter |
○ |
○ |
○ |
○ |
|
|
Yellow Filter |
○ |
○ |
○ |
○ |
|
|
Ground Glass |
○ |
○ |
○ |
○ |
|
|
Accessary |
Immersion Oil & Dust Cover |
● |
● |
● |
● |
