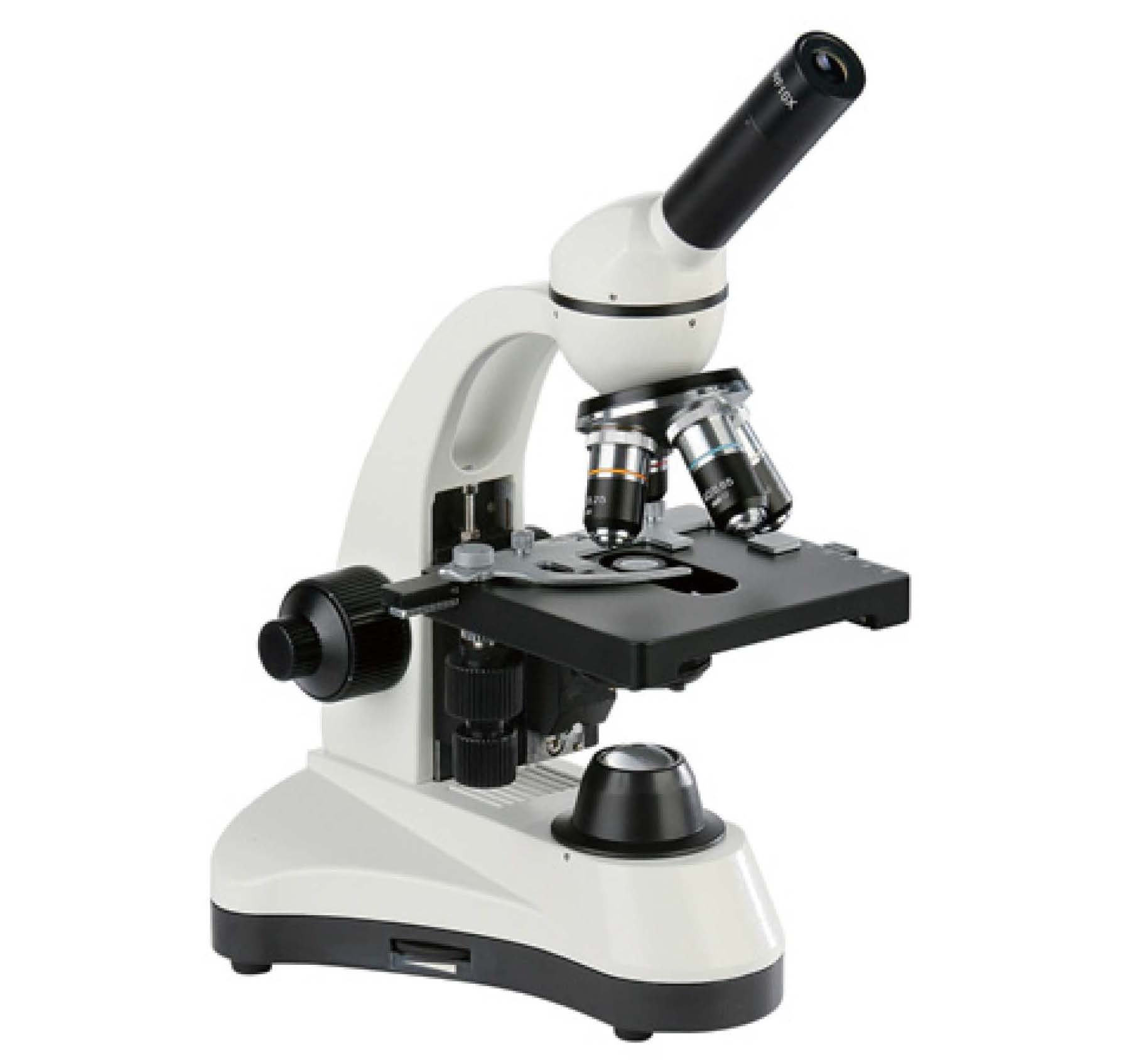

MOBE-80

Product Description

MOBE-80 series are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image and convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.

Features

■ With wide field eyepieces and achromatic objectives, the field of view is clear.

■ Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm.

■ High brightness white LED lamp transmission illumination.

  • Standard Specification
  • Optional Specification
  • Related Product
  • Download

Items

Specification

MOBE-81

MOBE-82

Optical System

Finity Optical System

Viewing Head

Monocular,360˚ rotatable (Inclination of 45˚)

Eyepiece

WF10X/18 mm



Objective

Achromatic objective 4X/0.10

Achromatic objective10X/0.25

Achromatic objective40X(s)/0.65

Achromatic objective100X(s,0)/1.25



Nosepiece

Triple nosepiece



Quadruple nosepiece



Stage

Fixed(Size:120mmX120mm, With five holes fixed iris diaphragm)



Double-layer mechanical, size:125mmX115mm, move range:70mmX30mm



Focus system

Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm

Condenser

 Abbe condenser



 Abbe condenser Rack &pinion adjustment



Illumination

High brightness white LED lamp



Name

Sort/Technique parameter

Eyepiece

Wide field  WF16X/11mm

Point 10X/18mm

Stage

Fixed(Size:120mmX120mm, With single lens and iris diaphragm)

Fixed(Size:120mmX120mm, with slide moving holder and Abbe condenser)

Filter

Blue filter

Green filter

Yellow filter

Frosted filter

Collector

For Fluorescent and Halogen lamp

For Incandescent lamp

Light source

High brightness white LED lamp

With adapter

High brightness white LED lamp

With adapter and charge batteries

Halogen lamp

12V 20W

Fluorescent lamp

110V/220V, 5W  Can be choose

Incandescent lamp

220V/110V, 20W Can be choose

Camera

Photography

USB Output

VIDEO Output

Adapter

(For LED illumination)

Input: 230V,50/60HZ   Output: 9V  500mA

Input: 110V,50/60HZ   Output: 9V  500mA
