- Wide field eyepiece, view field up to Φ22mm，more comfortable for observation
- Trinocular observing tube with dual transform,Light distribution (both): 100 : 0（100% for eyepiece）80 : 20（80% for trinocular head and 20% for eyepiece）
- Integrated stage is safer than traditional stage

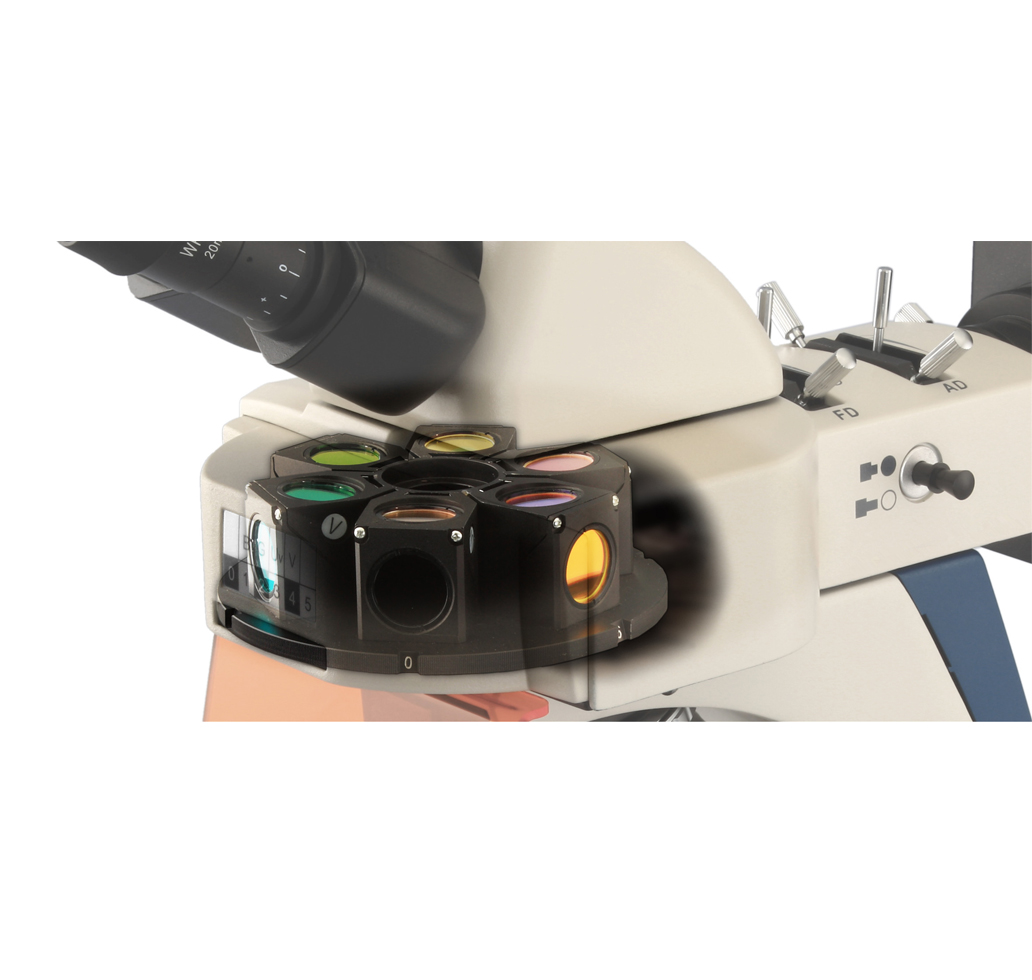

- Six-holes disk fluorescence unit, More fluorescence filters can be supplied
MOF-500S
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
MOF-501S |
MOF-502S |
MOF-503S |
MOF-504S |
||
|
Eyepiece |
WF10×／22mm (adjustable) |
●● |
●● |
●● |
●● |
||
|
Infinity Plan Objectives |
PLAN 4×／0.10 |
W.D.=12.10mm |
● |
● |
● |
● |
|
|
PLAN 10×／0.25 |
W.D.=4.64mm |
● |
● |
● |
● |
||
|
PLAN 20×／0.40(S) |
W.D.=2.41mm |
● |
● |
● |
● |
||
|
PLAN 40×／0.66(S) |
W.D.=0.65mm |
● |
● |
● |
● |
||
|
PLAN 100×／1.25(S, Oil) |
W.D.=0.12mm |
● |
● |
● |
● |
||
|
PLAN 2.5×／0.07 |
W.D.=8.47mm |
○ |
○ |
○ |
|
||
|
PLAN 60×／0.80(S) |
W.D.=0.33mm |
○ |
○ |
○ |
|
||
|
PLAN 100×／1.15(S, W) |
W.D.=0.19mm |
○ |
○ |
○ |
|
||
|
Seidentopf Binocular Head |
Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm |
○ |
○ |
○ |
○ |
||
|
Seidentopf Trinocular Head |
Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm, 80:20（80% for trinocular head and 20% for eyepiece） |
● |
● |
● |
● |
||
|
Nosepiece |
Quintuple |
● |
● |
● |
● |
||
|
Mechanical Stage |
Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm |
● |
● |
● |
● |
||
|
Swing Out Condenser |
N.A. 0.9/0.13, Swing out with iris diaphragm. |
● |
● |
● |
● |
||
|
Koehler Illumination |
6V/30W Halogen Lamp Wide voltage input: 100V～240V Field diaphragm , center adjustable |
● |
● |
● |
● |
||
|
Filter |
Blue |
● |
● |
● |
● |
||
|
Green |
○ |
○ |
○ |
○ |
|||
|
Amber |
○ |
○ |
○ |
○ |
|||
|
Grey |
○ |
○ |
○ |
○ |
|||
|
C-mount |
1×C-mount ( better for digital photograph) |
○ |
○ |
○ |
○ |
||
|
0.5× C-Mount (focus adjustable, better for digital camera) |
○ |
○ |
○ |
○ |
|||
|
Adaptor for Digital Photograph |
Used for CANON／NIKON／OLYMPUS etc. |
○ |
○ |
○ |
○ |
||
|
Fluorescence Attachment |

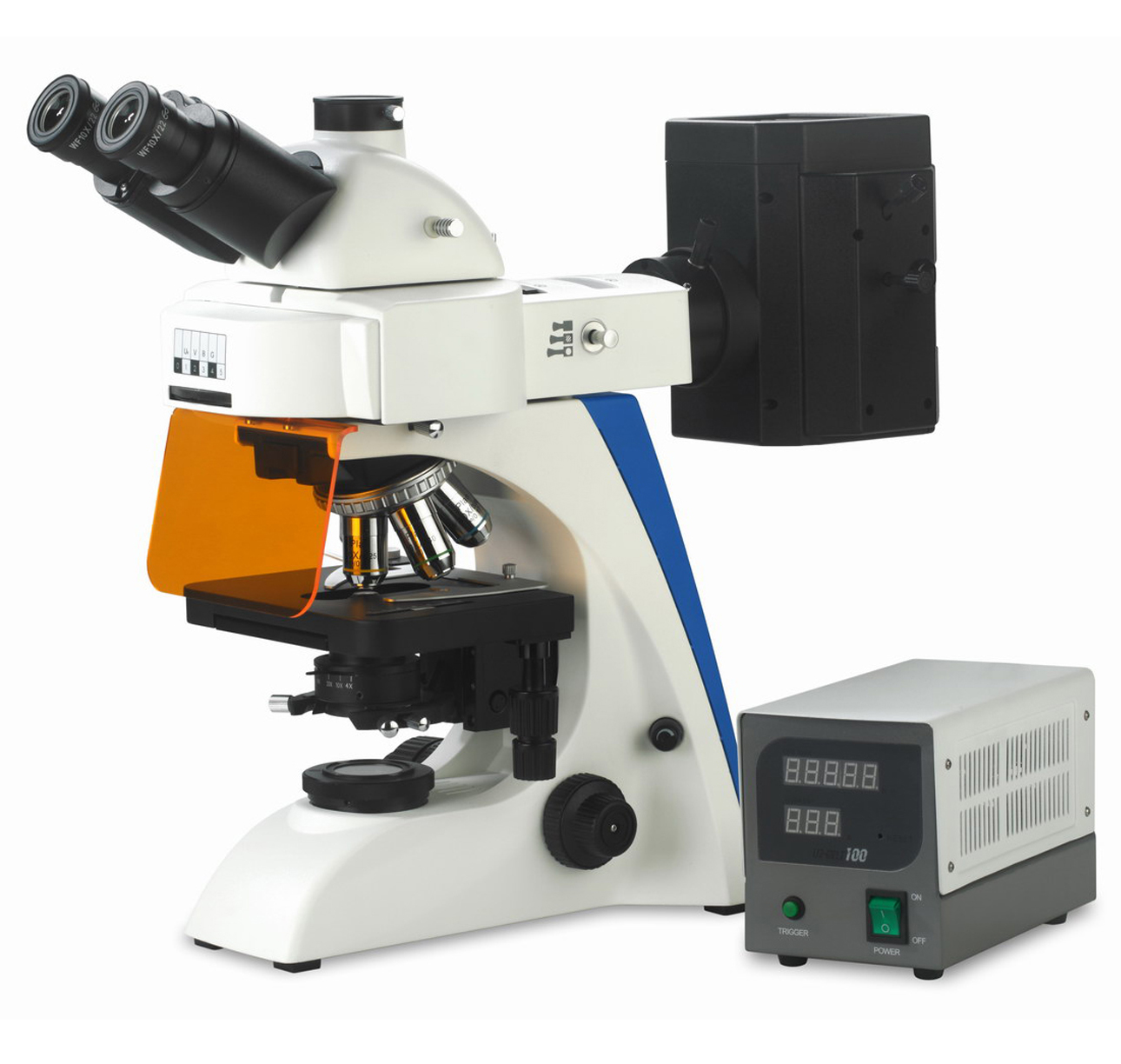

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. |
B,G |
● |
● |
|
|
|
|
UV,V |
● |
|
|
||||
|

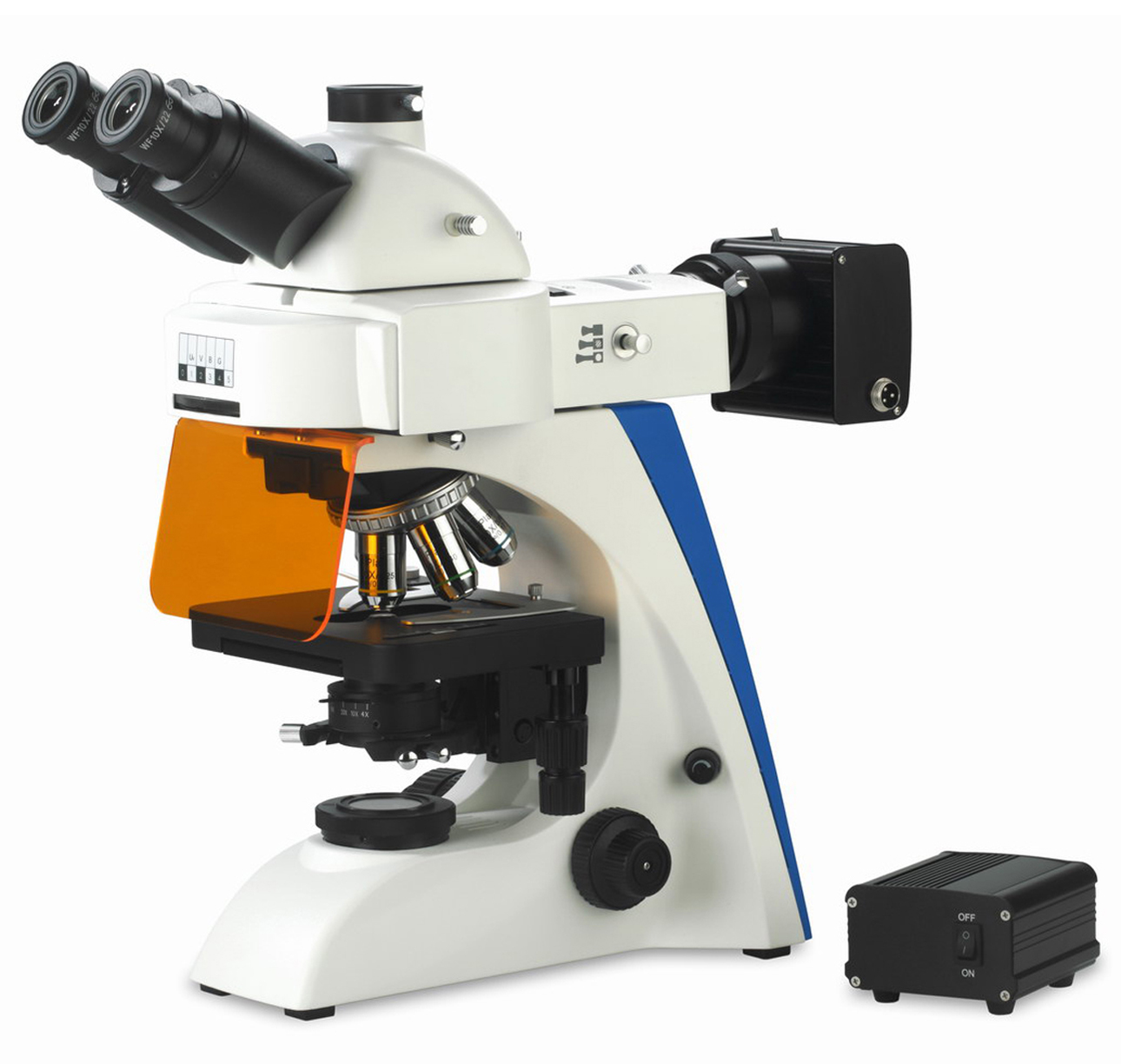

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp. |
B,G |
|
● |
● |
|||
|
UV,V |
|
|
● |
||||
|
Omega EPI fluorescence unit and OSRAM 100W Mercury |
○ |
○ |
○ |
○ |
|||
|
Phase Contrast Unit |
Quintuple hole turret 10× /20× /40× /100× phase contrast objective |
○ |
○ |
○ |
○ |
||
|
Independent slot 10× /20× /40× /100× phase contrast objective |
○ |
○ |
○ |
○ |
|||
|
Dark Field Unit |
Dark field condenser (dry)，apply to 4×- 40× objective |
○ |
○ |
○ |
○ |
||
|
Dark field condenser (wet)，apply to 100× objective |
○ |
○ |
○ |
○ |
|||
|
Polarizing Attachment |
Analyzer / Polarizer |
○ |
○ |
○ |
○ |
||
