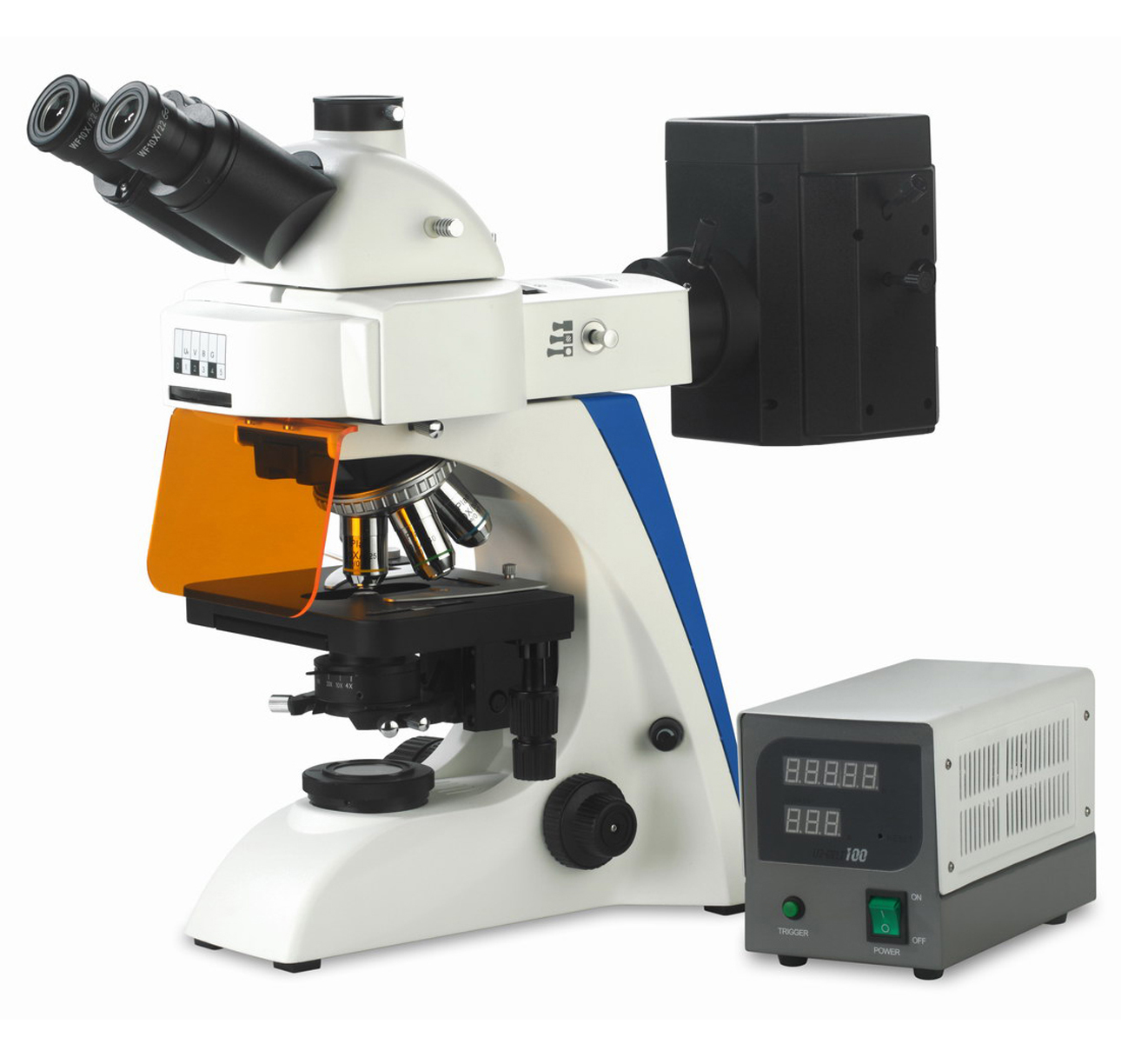

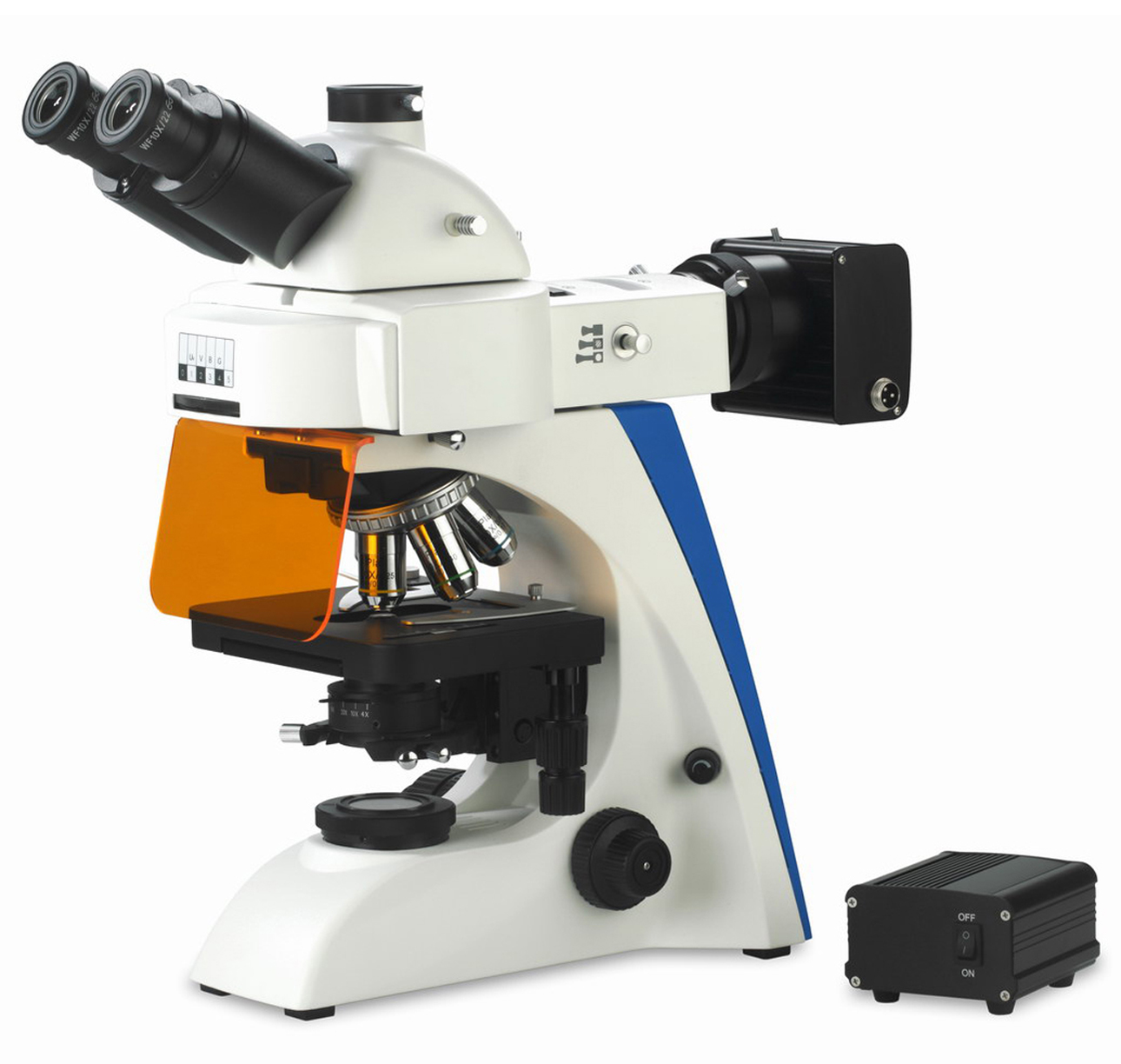

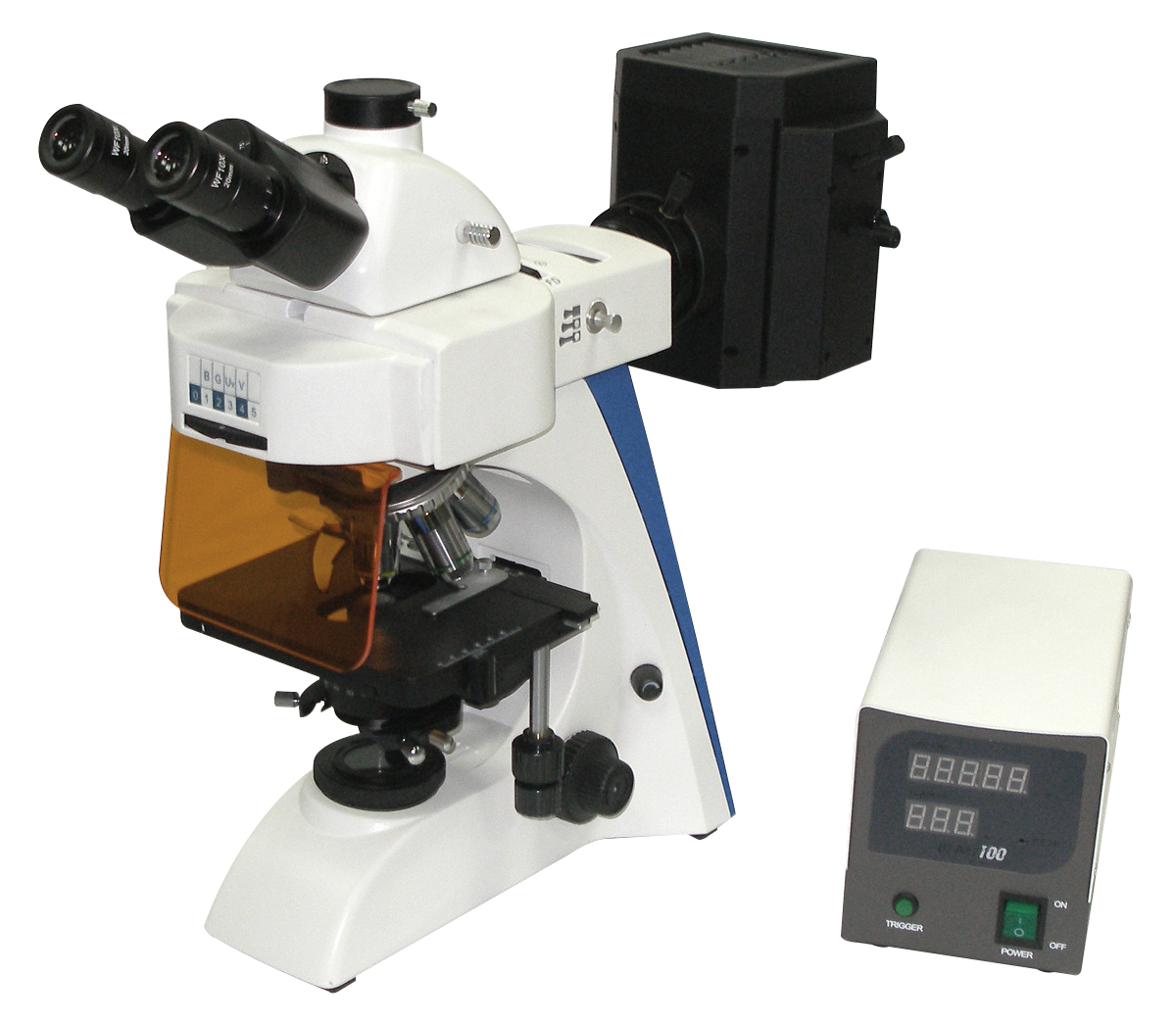

MOF-500 is used in Fluorescence microscopic observation and transmisstion light illumination.
It is ideal instrument used for the research of biology, cytology, oncology, genetics, Immunology, apply to scientific research, universities, medical and epidemic prevention.
MOF-500 is Infinity optical system, equip with infinity plan objectives, the optical system provides a high quality imaging.
Can observe fluorescence and reflected light illumination in the same time.
|
Items |
Specification |
MOF-501 |
MOF-502 |
MOF-503 |
MOF-504 |
||
|
Eyepiece |
WF10×／20mm (23.2) |
●● |
●● |
●● |
●● |
||
|
Infinity Plan Objectives |
PLAN 4×／0.10 |
W.D.=12.10mm |
● |
● |
● |
● |
|
|
PLAN 10×／0.25 |
W.D.=4.64mm |
● |
● |
● |
● |
||
|
PLAN 20×／0.40(S) |
W.D.=2.41mm |
● |
● |
● |
● |
||
|
PLAN 40×／0.66(S) |
W.D.=0.65mm |
● |
● |
● |
● |
||
|
PLAN 100×／1.25(S, Oil) |
W.D.=0.12mm |
● |
● |
● |
● |
||
|
PLAN 2.5×／0.07 |
W.D.=8.47mm |
○ |
○ |
○ |
○ |
||
|
PLAN 60×／0.80(S) |
W.D.=0.33mm |
○ |
○ |
○ |
○ |
||
|
PLAN 100×／1.15(S, W) |
W.D.=0.19mm |
○ |
○ |
○ |
○ |
||
|
Seidentopf Binocular Head |
Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm |
○ |
○ |
○ |
○ |
||
|
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°,Interpupilary Distance 48 -75mm, Light Distribution: 100: 0 / 80:20 |
● |
● |
● |
● |
||
|
Nosepiece |
Quintuple |
● |
● |
● |
● |
||
|
Mechanical Stage |
Stage Size: 175X145mm,Travel: 78mm×55mm |
● |
● |
● |
● |
||
|
Swing Out Condenser |
Abbe N.A. 1.25 with iris diaphragm. |
● |
● |
● |
● |
||
|
Koehler Illumination Wide voltage input: 100V～240V Field diaphragm , center adjustable |
6V/20W Halogen Lamp |
● |
● |
● |
● |
||
|
6V/30W Halogen Lamp |
○ |
○ |
○ |
○ |
|||
|
3W-LED Illumination |
○ |
○ |
○ |
○ |
|||
|
Filter |
Blue |
● |
● |
● |
● |
||
|
Green |
○ |
○ |
○ |
○ |
|||
|
Amber |
○ |
○ |
○ |
○ |
|||
|
Grey |
○ |
○ |
○ |
○ |
|||
|
C-mount |
1×C-mount ( better for digital photograph) |
○ |
○ |
○ |
○ |
||
|
0.5× C-Mount (focus adjustable, better for digital camera) |
○ |
○ |
○ |
○ |
|||
|
Adaptor for Digital Photograph |
Used for CANON／NIKON／OLYMPUS etc. |
○ |
○ |
○ |
○ |
||
|
Fluorescence Attachment |
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. |
B,G |
● |
● |
○ |
○ |
|
|
UV,V |
|
● |
|
||||
|
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp. |
B,G |
○ |
○ |
● |
● |
||
|
UV,V |
|
|
|
● |
|||
|
Omega EPI fluorescence unit and OSRAM 100W Mercury |
○ |
○ |
○ |
○ |
|||
|
Phase Contrast Unit |
Quintuple hole turret 10× /20× /40× /100× phase contrast objective |
○ |
○ |
○ |
○ |
||
|
Independent slot 10× /20× /40× /100× phase contrast objective |
○ |
○ |
○ |
○ |
|||
|
Dark Field Unit |
Dark field condenser (dry)，apply to 4×- 40× objective |
○ |
○ |
○ |
○ |
||
|
Dark field condenser (wet)，apply to 100× objective |
○ |
○ |
○ |
○ |
|||
|
Polarizing Attachment |
Analyzer / Polarizer |
○ |
○ |
○ |
○ |
||
|
Eyepiece |
WF10X/20mm (Reticule 0.1mm) |
|
WF16X/13mm |
|
|
Darkfield Device |
Darkfield Condenser(Dry), for 4X to 40X objective |
|
Darkfield Condenser(Wet), for 100X Objective |
|
|
C-mount |
0.5X,1X |
