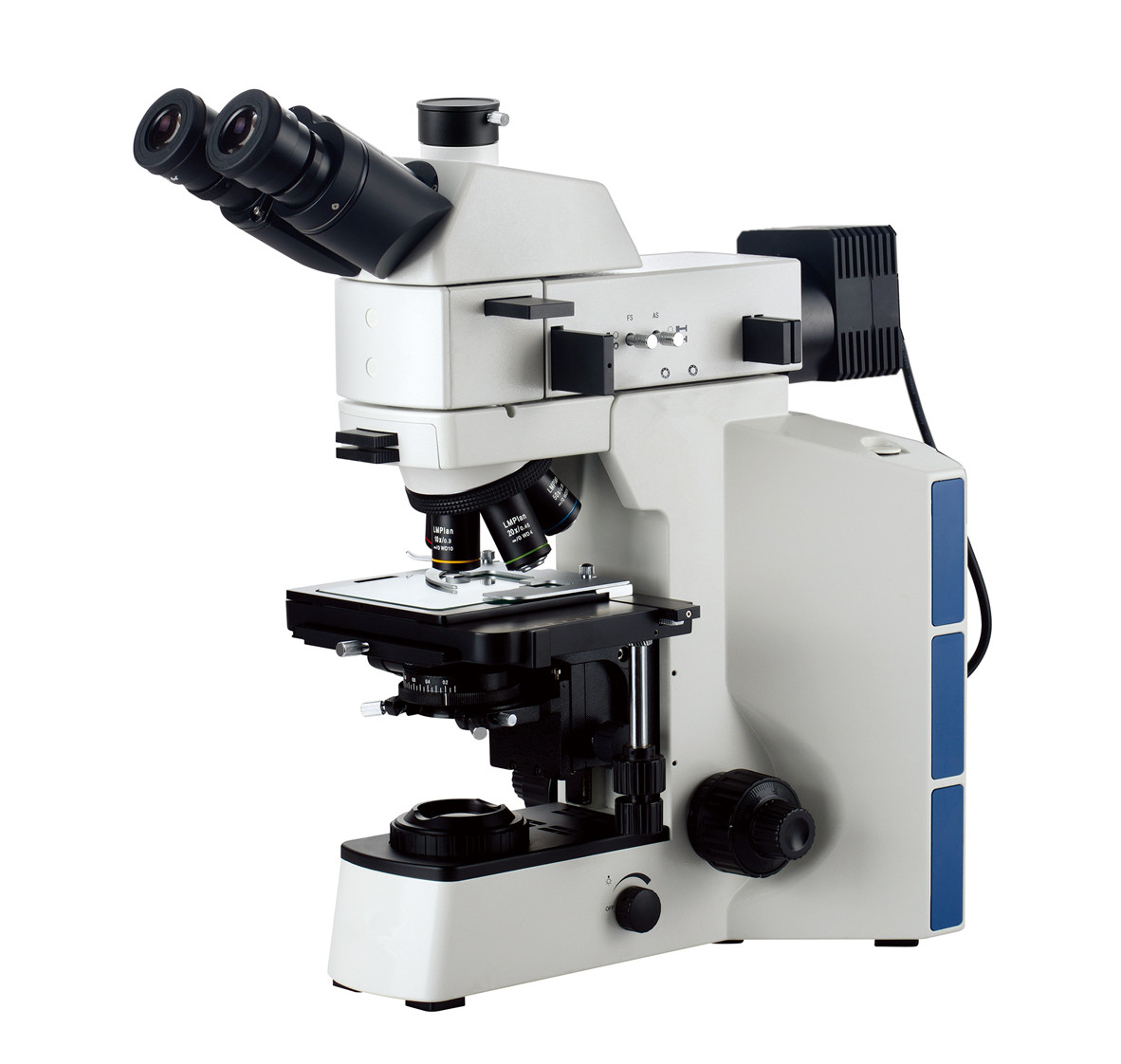

M-300
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
M-301 |
M-302 |
|
Eyepiece |
High eye point plan eyepiece PL10X/22mm |
●● |
●● |
|
High eye point plan eyepiece PL10X/22mm with reticule |
|||
|
High eye point wide field plan eyepiece PL10X22mm, diopter adjustable |
|||
|
High eye point plan eyepiece PL15X/16mm |
|||
|
Viewing head |
30°inclined gemel binocular head 360°rotating（infinity）,inter-pupillary range:54~75mm; Diopter adjustment±5 |
||
|
30°inclined gemel trinocular head 360°rotating（infinity）,inter-pupillary range:54~75mm; Diopter adjustment±5.B:T=0:100 or 50:50 |
● |
● |
|
|
Objectives |
Infinity LWD Metallurgical objective 5X/0.15, WD=10.8mm |
● |
● |
|
Infinity LWD Metallurgical objective 10X/0.30, WD=10 mm |
● |
● |
|
|
Infinity LWD Metallurgical objective 20X/0.45, WD=4 mm |
● |
● |
|
|
Infinity LWD Metallurgical objective 50X/0.55, WD=7.9 mm |
● |
● |
|
|
Infinity LWD Metallurgical objective 100X/0.80, WD=2.1 mm |
|||
|
Nosepiece |
quintuple nosepiece |
● |
● |
|
Body |
Reflection/Transmission body, Coaxial coarse and fine focus system, Coarse adjustment range 28 mm；the max height of sample is 28mm, precision of fine adjustment:0.002mm,，with coarse adjustment stop and tightness adjustment。Built-in external wide voltage AC adapter, 100V-240V, AC50/60Hz input |
● |
|
|
Reflection body, Coaxial coarse and fine focus system, Coarse adjustment range 28 mm；the max height of sample is 28mm, precision of fine adjustment:0.002mm,，with coarse adjustment stop and tightness adjustment。Built-in external wide voltage AC adapter, 100V-240V, AC50/60Hz input |
● |
|
|
|
Reflective Kohler illumination System, With iris diaphragm and aperture diaphragm, both centers adjustable, with oblique illumination system |
● |
● |
|
|
condenser |
NA0.9/swing out condenser(for Transmission ) |
● |
|
|
Stage |
double-deck mechanical stage 175*145mm，moving range 76x 42mm， position X、Y moving hand wheel |
● |
● |
|
illumination |
wide voltage AC adapter, 100V-240V, single 5W LED |
● |
|
|
single 5W LED lamp house (For Transmission) |
● |
||
|
C adapter |
1XCTV |
||
|
2/3C |
|||
|
1/2C |
