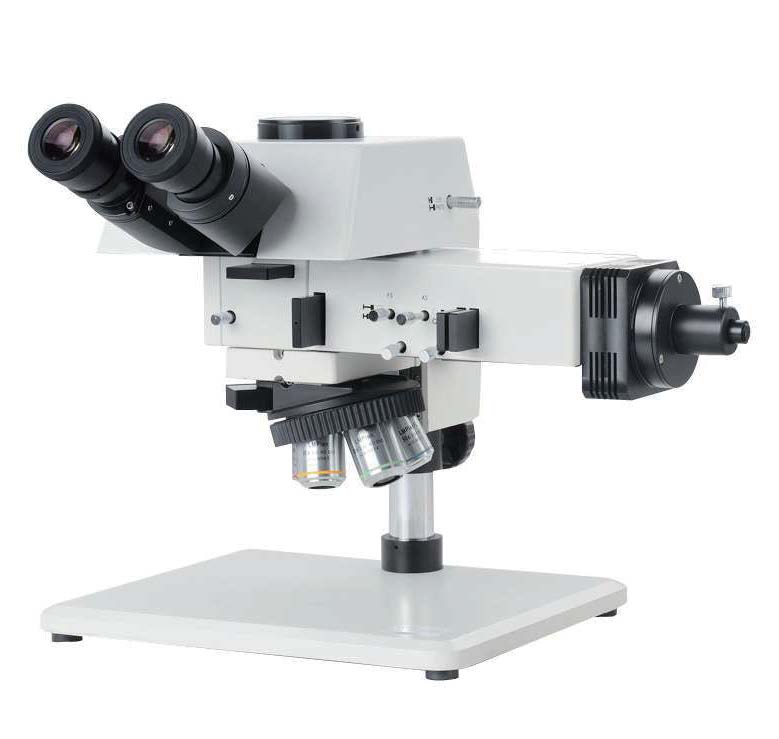

M-50

Product Description

High quality component design, simple and flexible combination and strong metallographic detecting function, M-50 is the best choice for large size sample observation.

■ Compact and flexible structure, adapting various surroundings.

■ Get clear and sharp image under various kind of observations.

■ Optical components are all specially handled and coated with special film.

■ New design of long working distance professional metallurgical objectives. High power objectives with semi-apochromatic technology.

  • Standard Specification
  • Optional Specification
  • Related Product
  • Download

Items

Specification

M-51

M-52

Observation method

Bright field/ Oblique illumination/ Polarizing//DIC





Bright field/Dark field/Polarizing/DIC



Optical system

Infinity color corrected optical system

Eyepiece

High eye-point plan eyepiece PL10X22mm

Objective

OLIP infinity long working distance metallurgical objectives for bright field



OLIPBD infinity long working distance metallurgical objectives for bright field or dark field



Viewing head

30°inclined trinocular head, splitting ratio for binocular: trinocular =100:0 or 50:50,diopter adjustment±5, interpupillary distance 54mm-75mm



25°inclined trinocular positive head, splitting ratio for binocular: trinocular =100:0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm



Nosepiece

Intilted quintuple nosepiece for bright field,with DIC slot.



Intilted quintuple nosepiecefor bright field or dark field,with DIC slot.



Base

big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm

Microscope body

Coaxial coarse and fine adjustment, coarse adjustment distance 32mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding。

Reflected illumination system

With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with oblique illumination switch.



With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device between bright field and dark field.



Illuminator

15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose(550mm/1000mm/1500mm)

Photo accessory

1/2CTV(focus adjustable), 1xCTV(focus adjustable), digital camera, relay lens





Polarizing/DIC accessory

Polarzer, fixed analyzer/ 360°analyzer, DIC board
