1 Galileo optical system, parallel light path
2 Zoom ratio 1:6.6
3 Adjustable viewing head, from 0°-30°
4 Coaxial Illumination
5 Modular construction
6 Adjustable depth of field

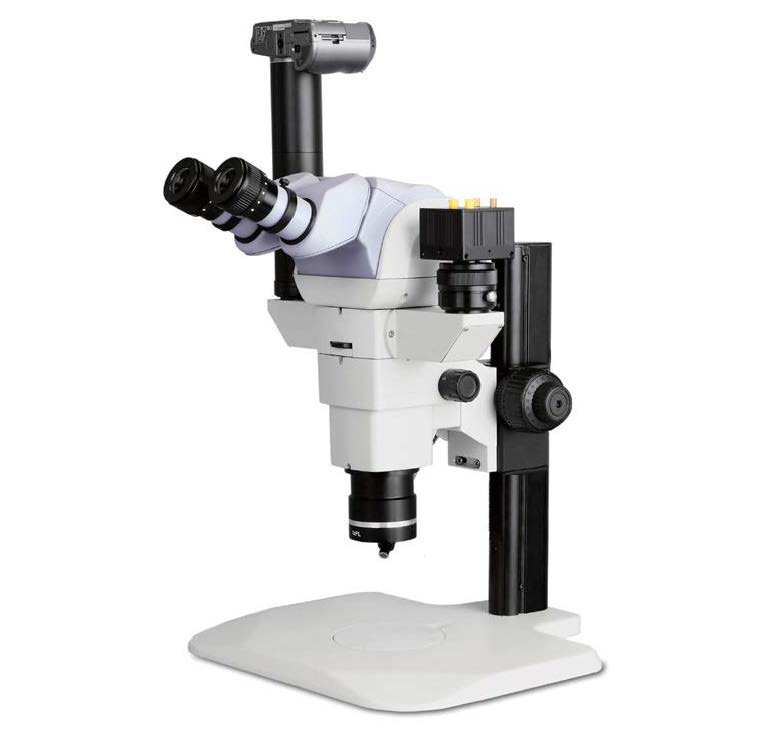

MOS-660
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
MOS-660 |
|
|
Objective Body |
Galileo optical system, Left and right parallel optical path, Non-coaxial image, Zoom range: 0.68-4.5X |
● |
|
|
Tube |
Head incline is adjustable from 0°-30°, 180° outside rotation and higher eye point to 80mm, Eyepiece locked ring |
● |
|
|
Focusing System |
Coaxial coarse and fine focusing system, Coarse stroke 240mm, Fine division 0.002m |
Without illumination |
● |
|
With 6V/15W halogen reflecting illumination |
○ |
||
|
Eyepiece (Diopter Adjustable) |
WF10X/23mm |
●● |
|
|
Objectives |
1X achromatic objective (W.D=93.87mm) |
● |
|
|
Base |
Standard base (without illumination) |
● |
|
|
Eyepiece (Diopter Adjustable) |
WF10X/23mm (Reticule, X axis: 0.1mm/100 division) |
|
WF10X/23mm (Reticule, X axis: 0.05mm/200 division) |
|
|
WF10X/23mm (Grid, X axis: 0.1 X 0.1mm/100 division) |
|
|
WF16X/14mm |
|
|
WF20X/12mm |
|
|
WF25X/9mm |
|
|
WF30X/8mm |
|
|
Objective |
0.3X achromatic objective (W.D=328.93mm) |
|
0.5X achromatic objective (W.D=197.19mm) |
|
|
0.7X achromatic objective (W.D=148.00mm) |
|
|
1X plan achromatic objective (W.D=84.92mm) |
|
|
1.5X achromatic objective (W.D=46.69mm) |
|
|
2X achromatic objective (W.D=34.04mm) |
|
|
2.5X achromatic objective (W.D=22.53mm) |
|
|
Image Output Unit |
One side image output unit |
|
Double sides image output unit |
|
|
Coaxial Illumination Unit |
1W/LED illumination unit |
|
Single soft optical fiber 5W/LED cold light unit, Fiber length: 550mm, Light passed diameter: 8mm |
|
|
Base |
Transmitting illumination base, output: 3W/LED adjustable clod lighting |
|
C-mount |
0.35X C-mount |
|
0.5X C-mount |
|
|
1X C-mount |
